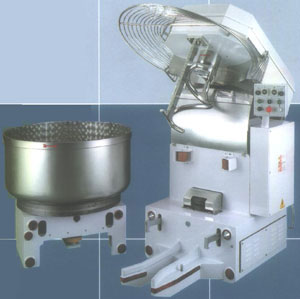

Emkay Automatic Spiral Mixer
The body of the mixer is made of steel, the control tool, spiral arm and protective grid and bowl are all in stainless steel. This type of mixture is suitable for bakeries and cake shops and allow for shorter working times to be obtained.
The work cycle can be manual or automatic with 2 speeds, both having programmable timers. It is also possible to change the rotation of the bowl during the automatic cycle. Belt drives eliminate vibration and noise: this system gives a considerable saving in maintenance costs. The low voltage electrical system (24 volts) has an automatic protection system with a very simple control panel for use in automatic or manual mode.
The mixer complies with the latest CE regulations.
TECHNICAL - SPECIFICATION
Automatic Spiral Kneading Machine
| Mod. Mod. |
Cap. Impasto Dough Cap. |
Cap. Farina Flour Cap. |
Ø Vasca Ø Bowl |
Motore Spirale Spiral Motor |
Motore Vasca Bowl Motor |
Dim. Lun. x Lar. x h
Dim. Length x Width x h |
Peso Weight |
|---|---|---|---|---|---|---|---|
| Kg | Kg | cm | Kw | Kw | cm | Kg | |
| M60 | 60 | 40 | 60 | 3.0/1.5 | 0.37 | 105x63x110 | 360 |
| M80 | 80 | 55 | 70 | 4/2 | 0.66 | 116x73x130 | 450 |
| M100 | 100 | 62 | 70 | 4/2 | 0.66 | 116x73x130 | 480 |
| M130 | 130 | 80 | 80 | 5.2/3 | 0.66 | 126x83x135 | 550 |
| M160 | 160 | 100 | 90 | 6.0/3.75 | 1.1 | 136x93x150 | 770 |
| M200 | 200 | 125 | 90 | 8.0/4.7 | 1.1 | 146x93x150 | 810 |
| M250 | 250 | 150 | 100 | 10.5/6.0 | 1.5 | 151x103x150 | 850 |
Automatic Spiral Mixer
| Mod. Mod. |
Cap. Impasto Dough Cap. |
Cap. Farina Flour Cap. |
Ø Vasca Ø Bowl |
Assorbimento Power Consumption | Dim. Lun. x Lar. x h
Dim. Length x Width x h |
h totale h total |
Peso Weight |
|---|---|---|---|---|---|---|---|
| Kg | Kg | cm | Kw | Kw | cm | Kg | |
| ME160 | 160 | 100 | 94 | 8,2 | 195x110x145 | 190 | 1210 |
| ME200 | 200 | 125 | 94 | 10,6 | 195x110x145 | 194 | 1250 |
| ME250 | 250 | 150 | 100 | 13 | 201x115x145 | 194 | 1290 |
