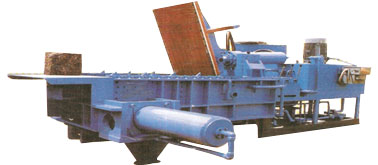

Triple Compression

TRIPPLE COMPESSION	APOLLO	XTRA
BALLING CHAMBER	30”× 38” × 74” (HxWxL)	24”×30” ×57” (HxWxL)
BALE SIZE	15” × 15”x8-10(HxWxL)	12” ×12” ×5-8”(HxWxL)
ELECTRIC MOTOR	40HP 3 PHASE 1440 RPM	30HP 3 PHASE 1440 RPM
BODY	FABRICATED	FABRICATED
HYDRAULIC COMBO DRIVE	GEAR CUN PLUNGER PUMP	GEAR CUM PLUNGER PUMP
HYDRAULIC OIL	HYDROL/ENCLO-68	HYDROL/ENCLO-68
FORCE ON LID CYLINDER – PISTON	75 TONS	40 TONS
FORCE ON MAIN CYLINDER – PISTON	75 TONS	75 TONS
FORCE ON SIDE CYLINDER – PISTON	75 TONS	120TONS
FORCE ON EJECTOR CYLINDER – PISTON	75 TONS	12TONS
WORKING PRESSURE	1.5 TON/INCH²	1.5 TON/INCH²
HARD LINER PLATES	PROVIDED	PROVIDED
SHEARING BLADES	PROVIDED	PROVIDED
STARTER	PROVIDED	PROVIDED
WEIGHT OF BALE	60-100 Kgs(Approx )(in MS) 25-40 Kgs (in Aluminum)	50-80 Kgs(Approx) (in MS) 20-30 Kgs (Approx) (in Aluminum)
IDLE CYCLE TIME	60-65 SECONDS (Approx)	60 -65 SECONDS (Approx)
WEIGHT OF THE MACHINE	12 Tons (Approx)	6-7 Tons (Approx)
OIL TANK CAPACITY	1200Lts.	600Lts.
