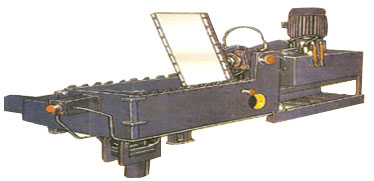

Triple Compression
Triple Compression
| Triple Compression | |
|---|---|
| BALLING CHAMBER | 20”× 20” × 45” (WxHxL) |
| BALE SIZE | 10” × 10”x8-10(HxWxL) |
| ELECTRIC MOTOR | 25HP 3 PHASE 1440 RPM |
| HYDRAULIC DRIVE | PLUNGER PUMP |
| HYDRAULIC OIL | HYDROL/ENCLO-68 |
| FORCE ON LID CYLINDER – PISTON | 40 TONS |
| FORCE ON MAIN CYLINDER – PISTON | 75 TONS |
| FORCE ON SIDE CYLINDER – PISTON | 75 TONS |
| FORCE ON EJECTOR CYLINDER – PISTON | 12 TONS |
| WORKING PRESSURE | 1.5 TON/INCH² (Square Inch) |
| WEIGHT OF THE BALE | 40-60 Kgs(Approx )(in MS) |
| IDLE CYCLE TIME | 90-95 SECONDS (Approx) |
| WEIGHT OF THE MACHINE | 5 Tons (Approx) |
| OIL TANK CAPACITY | 300 Lts. |
| OPTIONAL | HARD LINER PLATES SHEARING BLADES |
